Make a Difference. Zero emissions. Perfect trails.

Engine

Engine

Electrically driven with hydrostatic circuit

Electrically driven with hydrostatic circuit

Power

Power

245 hp

180 kW / 245 hp

Torque

Torque

737 ft-lb

1.000 Nm

Your Benefits

Sustainability without compromise

Sustainability without compromise

We’re committed to producing machines with zero CO2 emissions that deliver proven results and perfect trails in all snow conditions.

Planning for tomorrow

Planning for tomorrow

Through our development of -CO2-emission-free snow groomers, we enable you to be prepared for the future while meeting the needs of your customers today.

Helping resorts achieve their goals

Helping resorts achieve their goals

Ski resorts and Nordic centers are setting new targets to reduce their carbon footprints. The electric Husky E-Motion can help resorts achieve these goals.

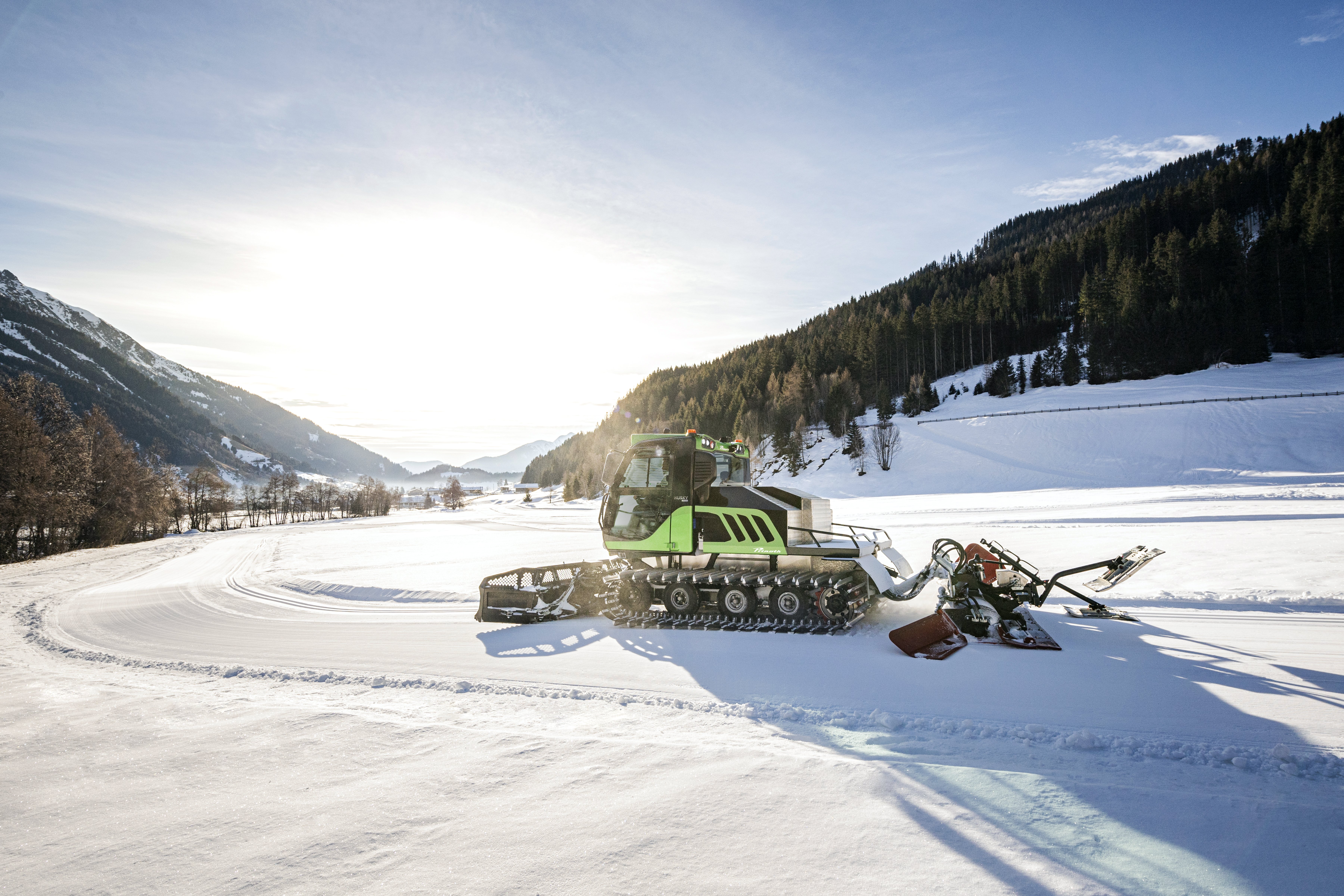

Quiet and Comfortable

The electric Husky E-Motion is quieter than any other groomer. With its comfortable seats, Prinoth Control Unit, ergonomic operating positions, and 12” tilting touchscreen the E-Motion is not only good for the environment, it’s enjoyable to operate.

Configuration

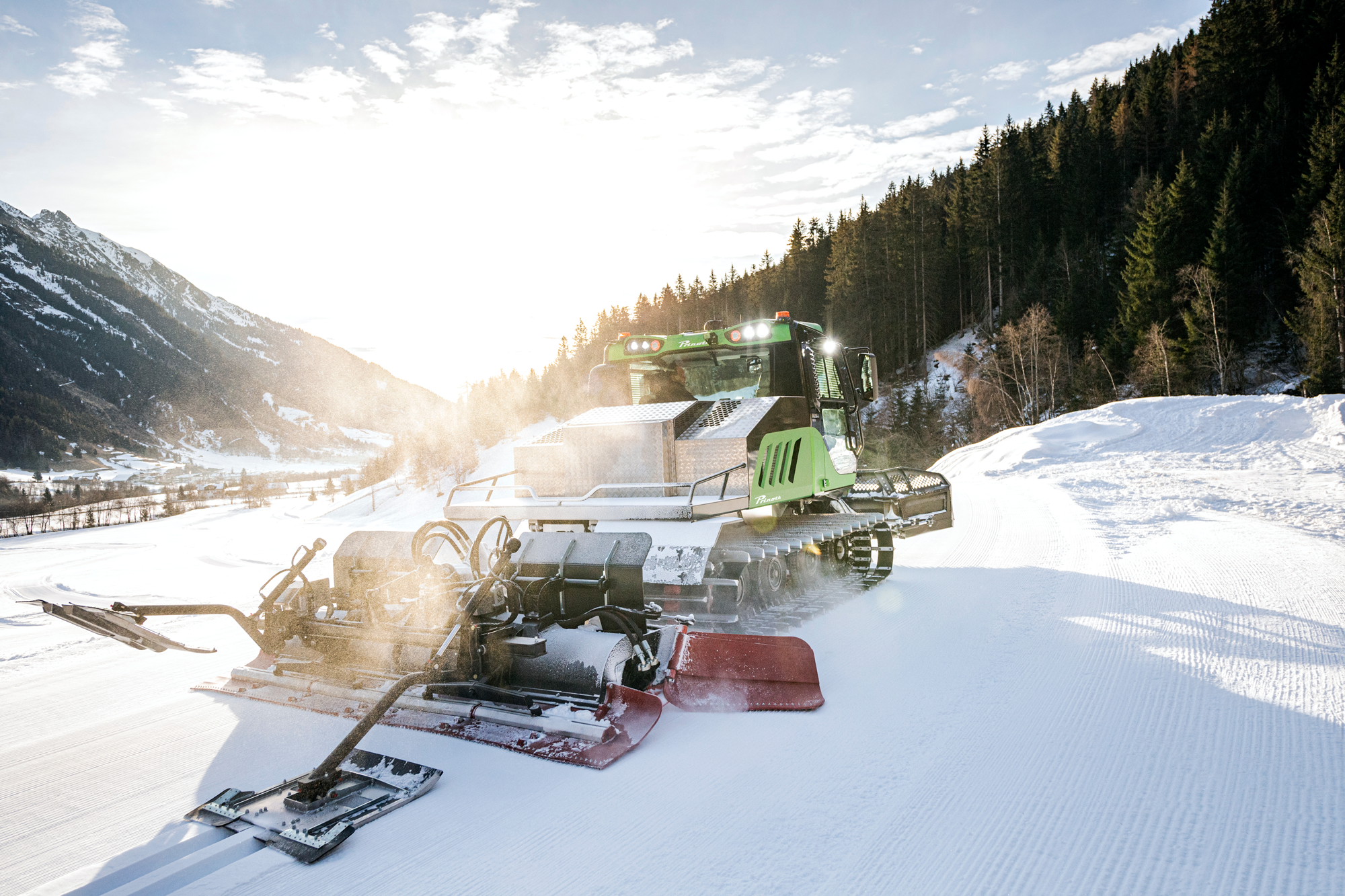

The Husky E-Motion with Nordic LIner guarantees perfect finishes for fantastic cross-country skiing experiences.

Skating
Skate skiers can look forward to an even, smooth surface. The Skating finisher has a smaller profile than an alpine finisher , which produces a finer, narrower corduroy finish – ideal for a smooth skating glide.

Classic Tracks
For the classic style, the Nordic Liner prepares precise, long lasting tracks that meet the highest standards – whether for Olympic and World Cup competitions, or a fun ski with friends.

Two track setting plates and the track tillers can be used independently. They adjust position and surface pressure depending on the requirements and conditions of the trail. This ensures efficient operation and can help reduce fuel consumption. Both the track-setting plates and the track tillers follow the vehicle at the same time, guaranteeing a perfect track even on winding routes.

The X-package includes double the range of motion of the blade and greatly increased range of the tiller. LED lights, inclinometers on both the vehicle and blade, distance measurement tool, and rearview camera are also standard on Husky X machines. These components help operators build and maintain park features and terrain-based learning areas.

Features

The customizable Prinoth Control Unit is convenient and practical. Operators can tailor the user interface with their preferred shortcuts and vehicle settings. This means that each time they’re in the driver’s seat, the relevant settings are saved—making the start-up process faster so that trails can be groomed sooner.
The 12-inch tilting touchscreen makes everything easy to see at night or during the day.
The display of the rearview camera can be changed to large or small at the top of the screen.
Vital details about the machine such as engine, tiller, and quick access pages are always visible.

Precise Control & Comfortable Operation
The improved “joystick-in-joystick” design provides precise blade and tiller control and allows simultaneous blade movement. The ergonomic joystick hand rest enables hours of smooth, comfortable operation. The fast reaction time of the joystick makes it easy for operators to feel the blade in action, which increases accuracy and operator comfort.

Technical data

Download (PDF)
  • Engine

    Electrically driven with hydrostatic circuit

    Electrically driven with hydrostatic circuit

  • Power

    245 hp

    180 kW / 245 hp

  • Torque

    737 ft-lb

    1.000 Nm

  • Battery Capacity

    Premium 200 kWh
    Basic 100 kWh +/- 5 %

    Premium 200 kWh
    Basic 100 kWh +/- 5 %

  • Emission standard

    Zero CO2

    Zero CO2

  • Track working width

    8'2" / 9'2" / 10'2" / 11'2"

    2,5 / 2,8 / 3,1 / 3,4 m

  • Vehicle length (without blade/tiller)

    13'4"

    4.065 mm

  • Total length with attachments

    23'9" / 22'4"

    7.250 mm / 6.810 mm

  • Total length with attachments and Nordic Liner

    28'4"

    8.630 mm

  • Total height with tracks

    9'1"

    2.770 mm

  • Clearing blade with side wings open

    Standard: 10'8" / 11'11"
    Master: 12'8"

    Standard: 3.250 mm / 3.650 mm
    Master: 3.875 mm

  • Clearing blade with side wings closed

    Standard: 8'11" / 9'10"
    Master: 10'7"

    Standard: 2.720 mm / 3.000 mm
    Master: 3.220 mm

  • Tiller with side wings raised

    V2.3: 10'1"
    V2.5: 11"
    V2.8: 11'7"
    V3.1: 12'8"
    Powertiller: 14'7"

    V2.3: 3.075 mm
    V2.5: 3.345 mm
    V2.8: 3.530 mm
    V3.1: 3.880 mm
    Powertiller: 4.440 mm

  • Tiller with side wings lowered

    V2.3: 13'5"
    V2.5: 14'4"
    V2.8: 14'11"
    V3.1: 16'1"
    Powertiller: 16'11"

    V2.3: 4.095 mm
    V2.5: 4.365 mm
    V2.8: 4.550 mm
    V3.1: 4.900 mm
    Powertiller: 5.155 mm

  • Run Time

    up to 3 hours

    up to 3 hours

  • Charging Capacity

    22kW AC / 100kW DC

    22kW AC / 100kW DC

  • Weight with tracks, blade, tiller

    17,637 lbs

    8.000 kg
