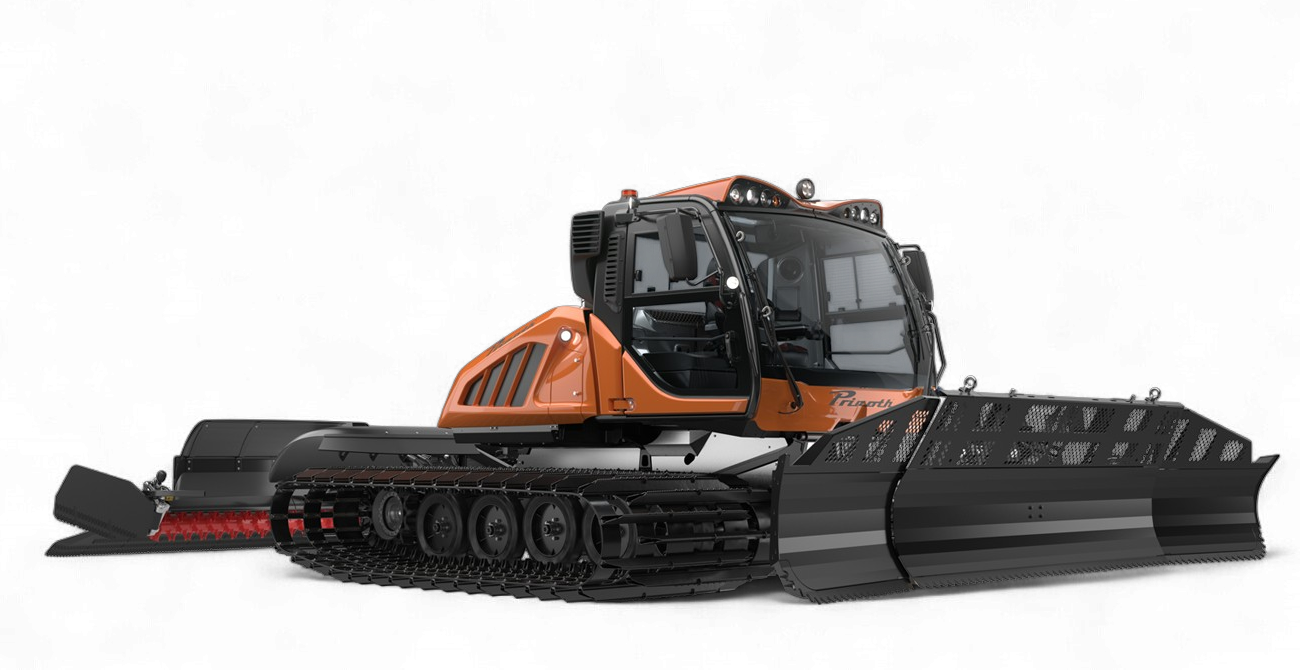

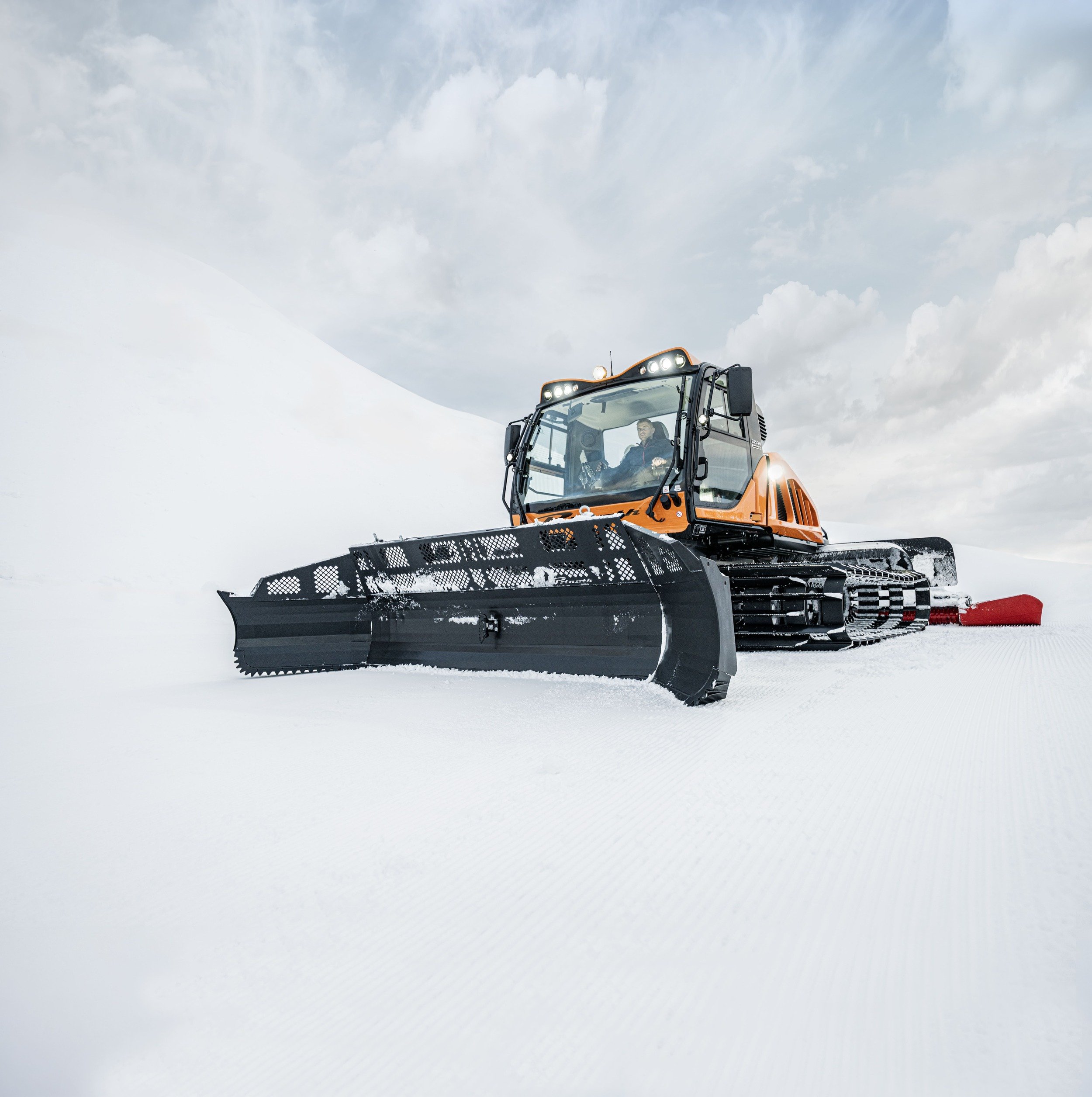

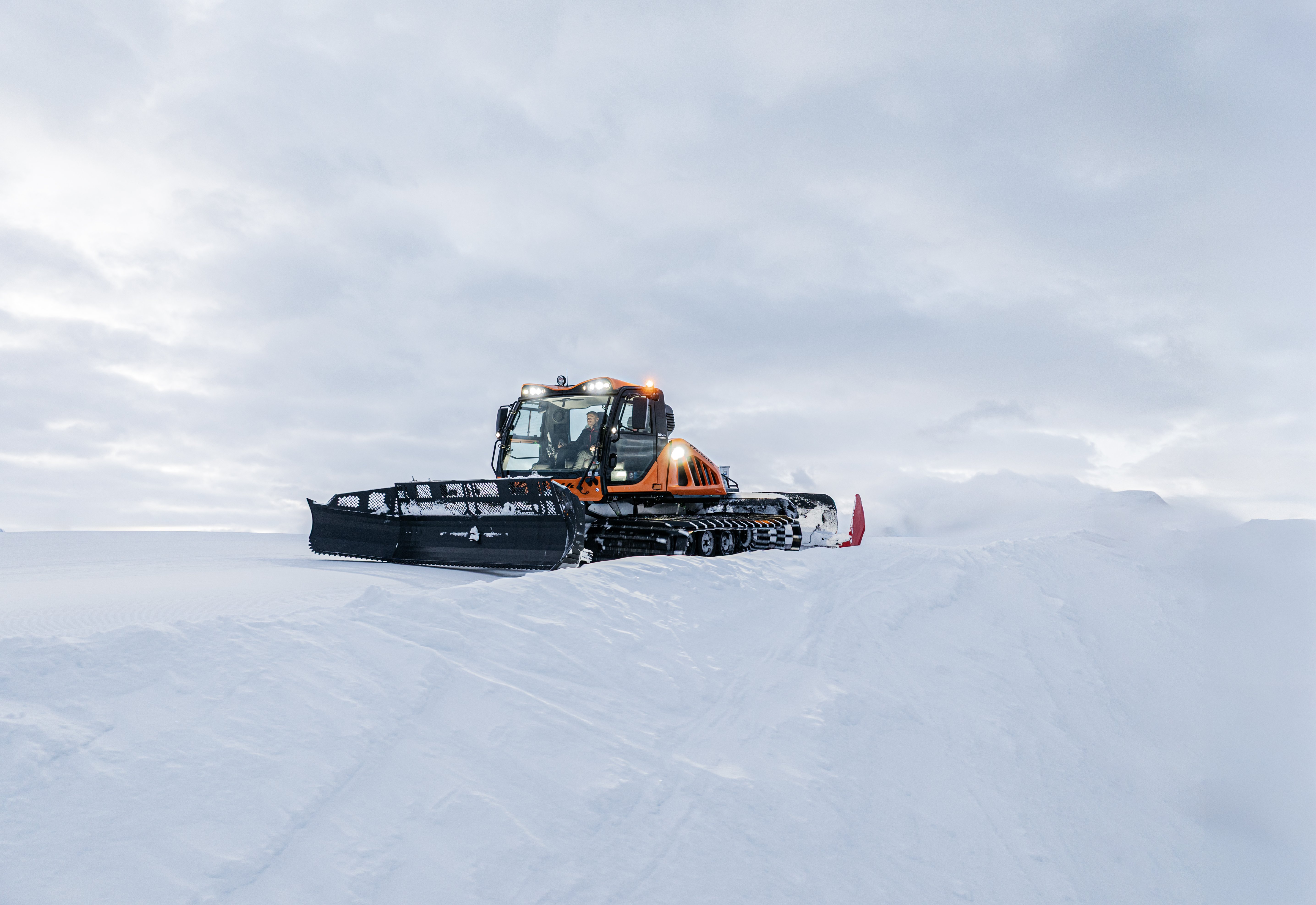

BISON ANTARCTIC

BISON ANTARCTIC

Extreme conditions demand extreme performance

Engine

Engine

CAT C9.3B
CAT C9.3B
Power

Power

422 hp @ 1,800 rpm
Power 310 kW @ 1.800 rpm
Torque

Torque

1,335 ft-lb @ 1,400 rpm
1.810 Nm @1.400 rpm

Your Benefits

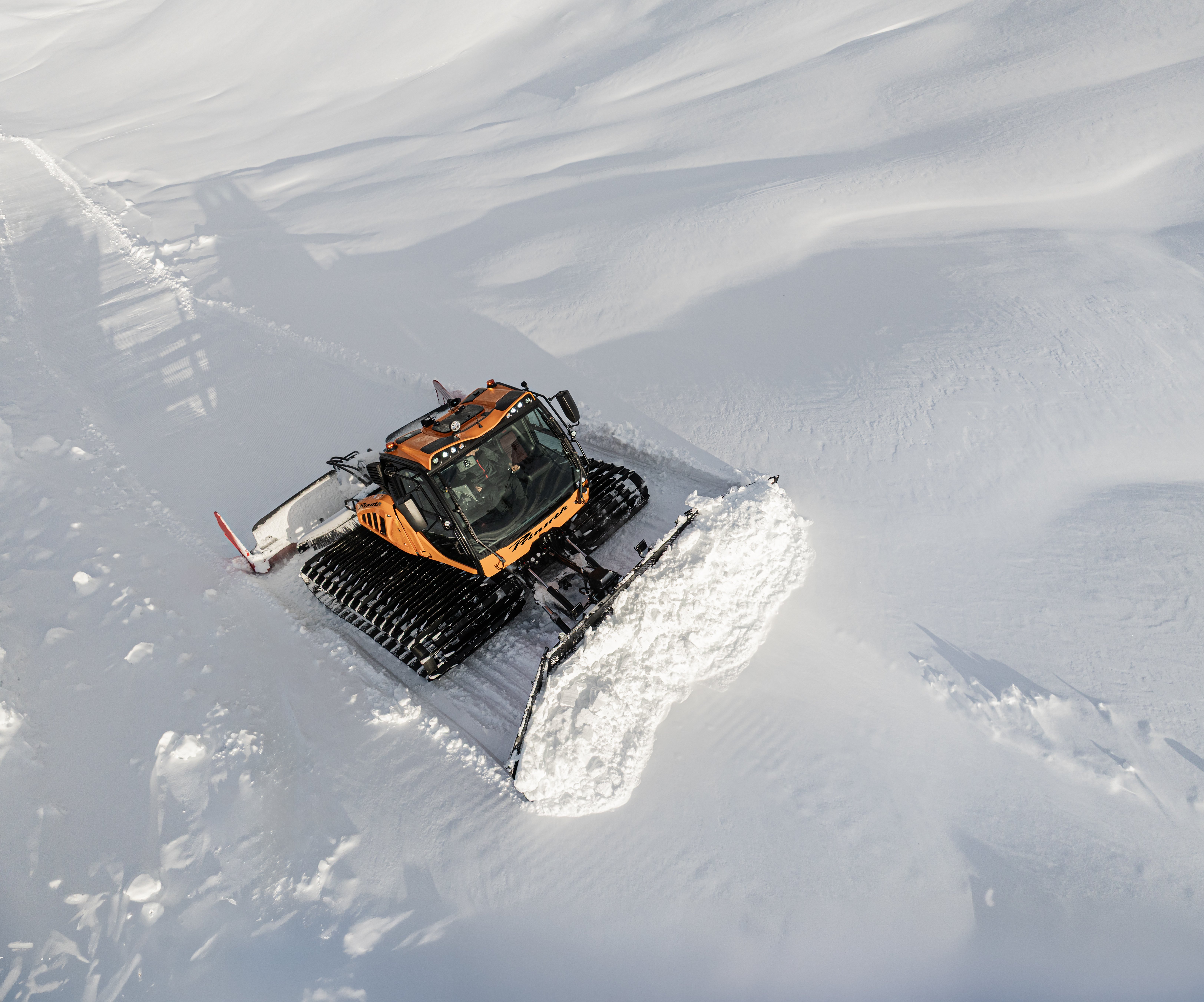

Built for Antarctica

Built for Antarctica

Perform any task where nature is at its toughest. Whatever the job—get it done faster, safer, and without compromise.

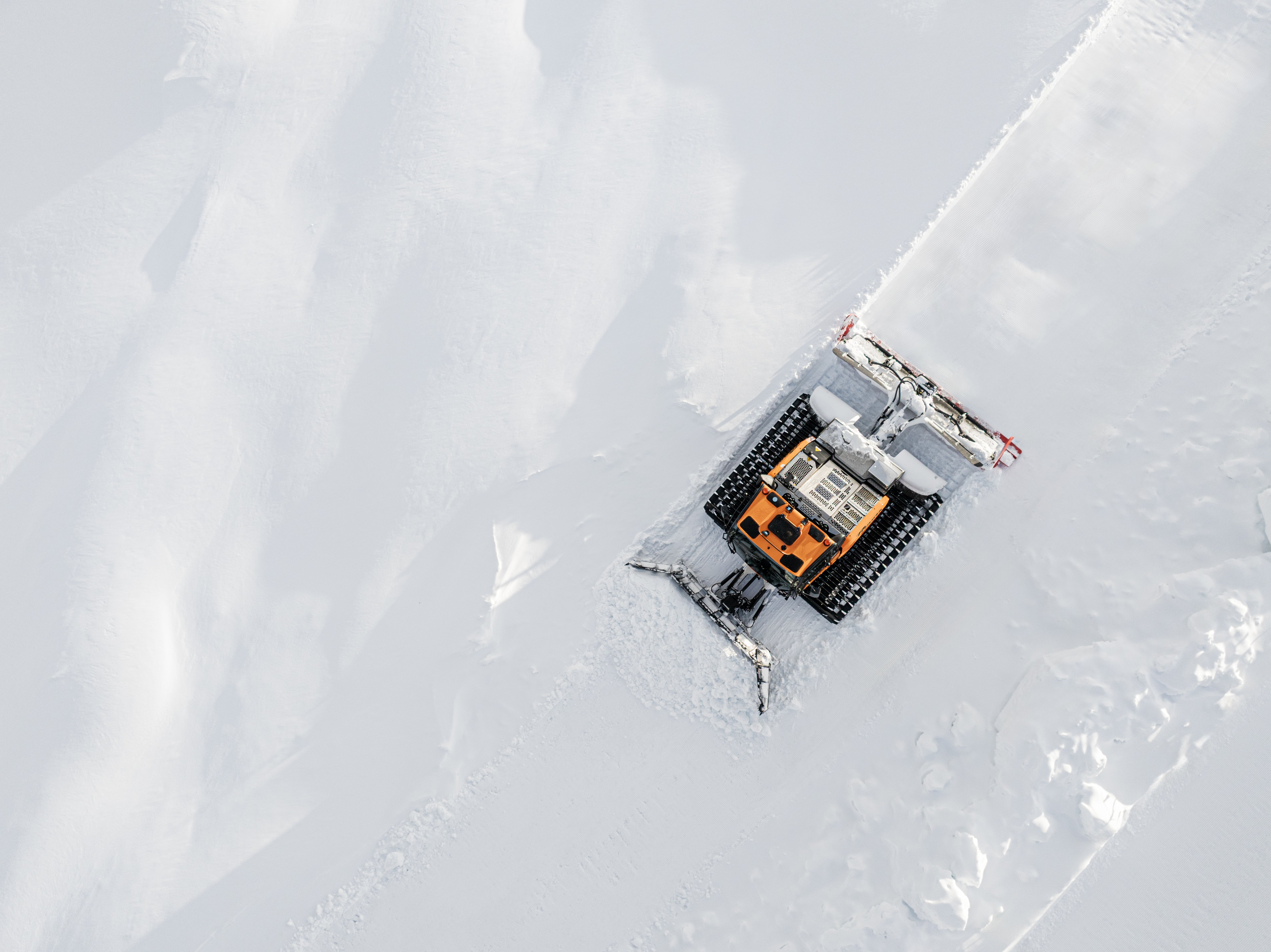

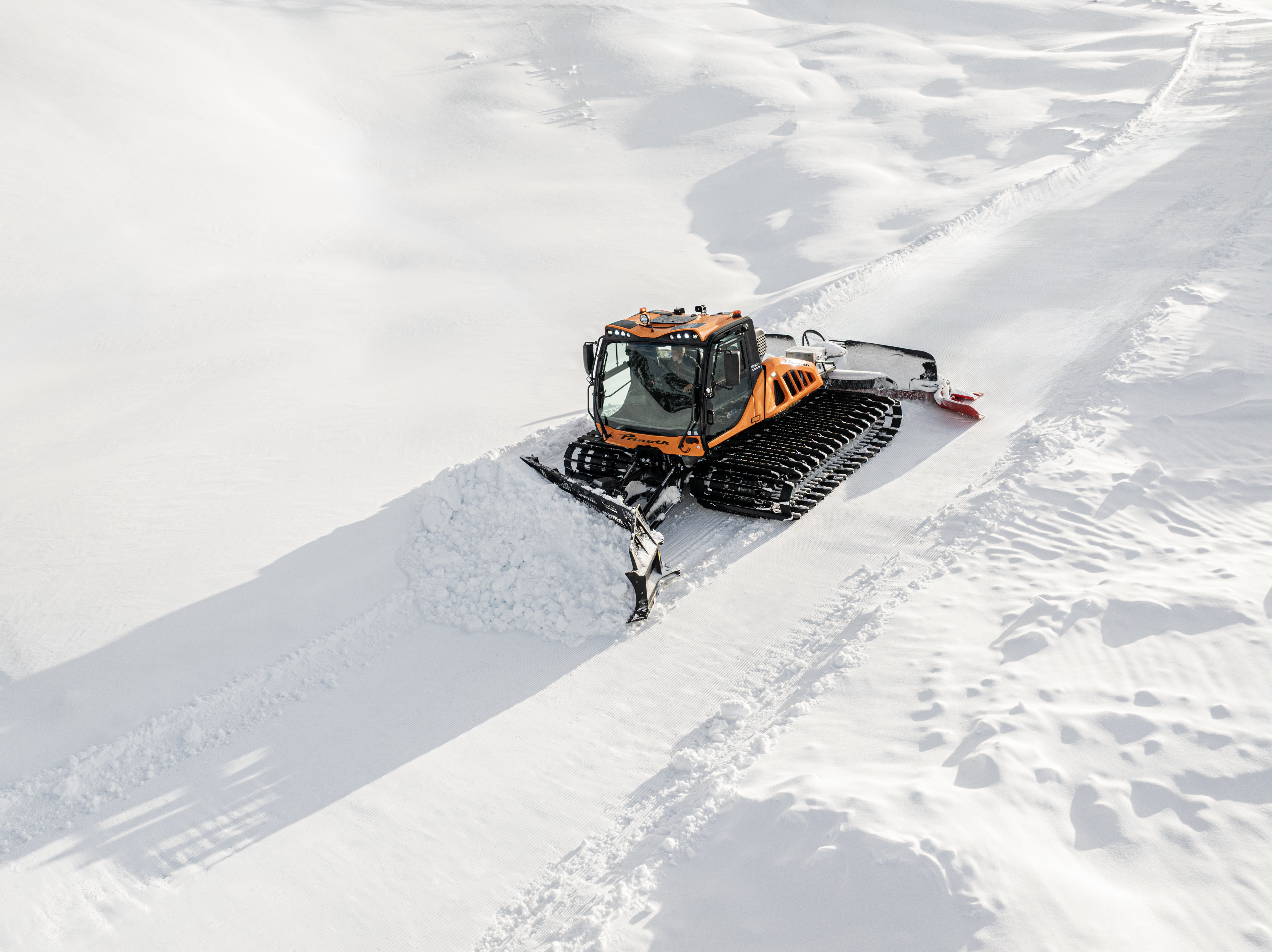

One Machine. Many Possibilities

One Machine. Many Possibilities

From prepping runways to base work or heavy-duty construction—the Bison Antarctic adapts to your mission with the right tools for the job.

Ready for Any Transport Mission

Ready for Any Transport Mission

Equipped with the Multipurpose Transport Cabin, the Bison Antarctic carries crews and supports rescue and research. It also moves heavy loads.

Features

Ideal Power Performance
To be powerful and reliable in the toughest cold conditions the Bison has a Stage IIIA engine, which does not require AdBlue/DEF and can use a variety of different fuel types, such as Jet A1, SAB, or AN8. To start the engine in the toughest conditions and keep it running smoothly, it comes with the purpose-built Polar Kit. Specialized protection systems prevent ice buildup on the cooling system, exhaust pipe and air intake.

Power and reliability

Passengers, Rescue & Research
The multipurpose Transport Cabin can be used for passenger transportation, rescue or as a research vehicle, providing a capacity of 11.3 m³ or 15 people. An autonomous heating system doesn’t place restrictions on the standard use of the snow groomer. The fixation point for a rescue sled ensures safe transportation of individuals in need of medical care.

Heavy Duty
The Bison is designed to move loads up to 30 tonnes. This makes the Bison the ideal transport vehicle for fuel tanks, residential and research units, containers and everything else you need, without compromising its standard functions as a snow groomer.

Transportation

Custom Interface
The customizable Prinoth Control Unit is convenient and practical. Each operator can tailor the user interface with their preferred shortcuts and vehicle settings. This means that each time they take the sticks, their relevant settings are saved with the RFID key – making the start-up process faster.

Single Touch
The 12” tilting touchscreen makes everything easy to see at night or during the day. The rearview camera display can be changed to large or small on the screen. And most important, vital details about the machine such as quick access pages, engine, tiller and winch are always visible.

Prinoth Control Unit

Precise Control & Comfortable Operation
The “joystick-in-joystick” design provides precise blade and tiller control and allows simultaneous blade movement. The ergonomic joystick hand rest enables hours of smooth, comfortable operation. The reaction time has been reduced making it easier for operators to feel the blade in action which increases accuracy and operator comfort.

Joystick-in-Joystick

A Cockpit For Top Performance
Modern, stylish, quiet, comfortable – the Bison’s large cabin makes working a pleasure. The large cabin with its compact interior heater and optional sound system creates a comfortable home base for the operator, working long shifts in the vehicle.

For Utmost Safety
To enhance safety, an inactivity alarm is activated when there is no action on the Prinoth Control Unit for a certain period of time, for example if the operator experiences drowsiness or distraction while driving. It sets off a visual and acoustic alarm and if there is no response, it slows down the vehicle eventually stopping it.

Cabin Comfort

Standard Center Seat
The standard center seat, tilting touch display, LED lighting with a halogen spotlight give a great all-round view and allow the operator to get in and out on either side.

Additional seating options
The cabin can be equipped with two additional full-size passenger seats to transport your team.

Seating Options

Technical data

Download (PDF)
  • Engine

    CAT C9.3B
    CAT C9.3B
  • Power

    422 hp @ 1,800 rpm
    Power 310 kW @ 1.800 rpm
  • Torque

    1,335 ft-lb @ 1,400 rpm
    1.810 Nm @1.400 rpm
  • Cylinder and Displacement

    Straight-6
    Straight-6
  • Emission standard

    Euromot Stage IIIA / EPA Tier 3
    Euromot Stage IIIA / EPA Tier 3
  • Track working width

    13'10"
    4.210 mm
  • Vehicle length (without blade/tiller)

    15'2"
    4.630 mm
  • Total vehicle length with attachments

    29'5"
    8.730 mm
  • Total height with tracks (without winch)

    9'11"
    3.030 mm
  • Blade width with blade wings open (X incl. Shaping Kit)

    19'0"
    5.750 mm
  • Blade width with blade wings closed (X incl. Shaping Kit)

    15'3"
    4.640 mm
  • Tiller with tiller wings raised (Power)

    17'9"
    5.400 mm
  • Tiller with tiller wings lowered (Power)

    20'4"
    6.200 mm
  • Tank capacity

    84.5 gal (with additional fuel tank)
    320 L (with additional fuel tank)
  • Fuel Types

    Jet A1, SAB, AN8 or similar
    Jet A1, SAB, AN8 or similar
  • Weight with tracks and blade

    from 19,478 lbs
    from 8.835 kg

Customer Service

PRINOTH PARTS SHOP

PRINOTH PARTS SHOP

Guaranteed Prinoth Original Parts ensure long-term performance and reliability, and are available at the click of a button on the Prinoth Parts Shop.

More

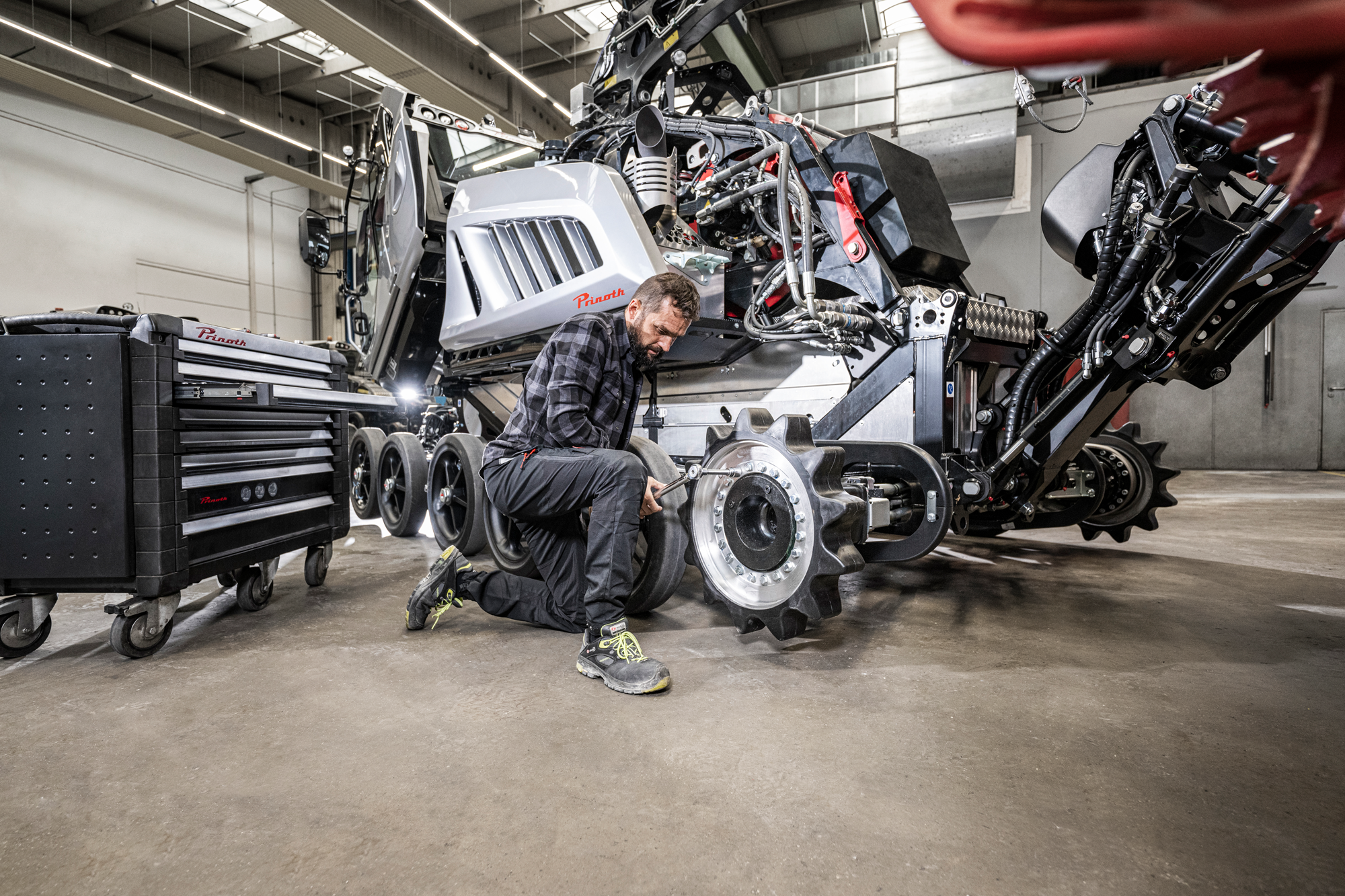

PRINOTH SERVICE

PRINOTH SERVICE

Expert support and technical assistance during inspections, repairs and maintenance work are all part of Prinoth’s customer service promise.

More
PRINOTH ACADEMY

PRINOTH ACADEMY

Knowledge and skills are the foundations for creating perfectly groomed slopes, parks and trails. Training programs are available for both technicians and operators. Choose from theory, hands-on practice, or both.

More
Prinoth Connect

The tools of tomorrow

We have many possibilities to make your work life easier through our connected services and products. Imagine a snow groomer that gives operators all the information they need in real time, showing points of interest such as hidden anchors or boundary lines. Or snow groomers that take over more mundane tasks so that operators can concentrate on creating perfect finishes. And even snow groomers that configure each other’s settings to ensure maximum efficiency.

Snow Measurement

Snow Measurement

Be sustainable when managing snow.

More
Fleet Management

Fleet Management

The best overview of your operations.

More
Task Manager

Task Manager

Know what to do and when to do it at anytime.

More
Maintenance Overview

Maintenance Overview

Stay on top of all repairs and maintenance.

More
Object Editor

Object Editor

Simplify slope management.

More
Smart Zone

Smart Zone

Control critical zones.

More

Attachments

Attachments

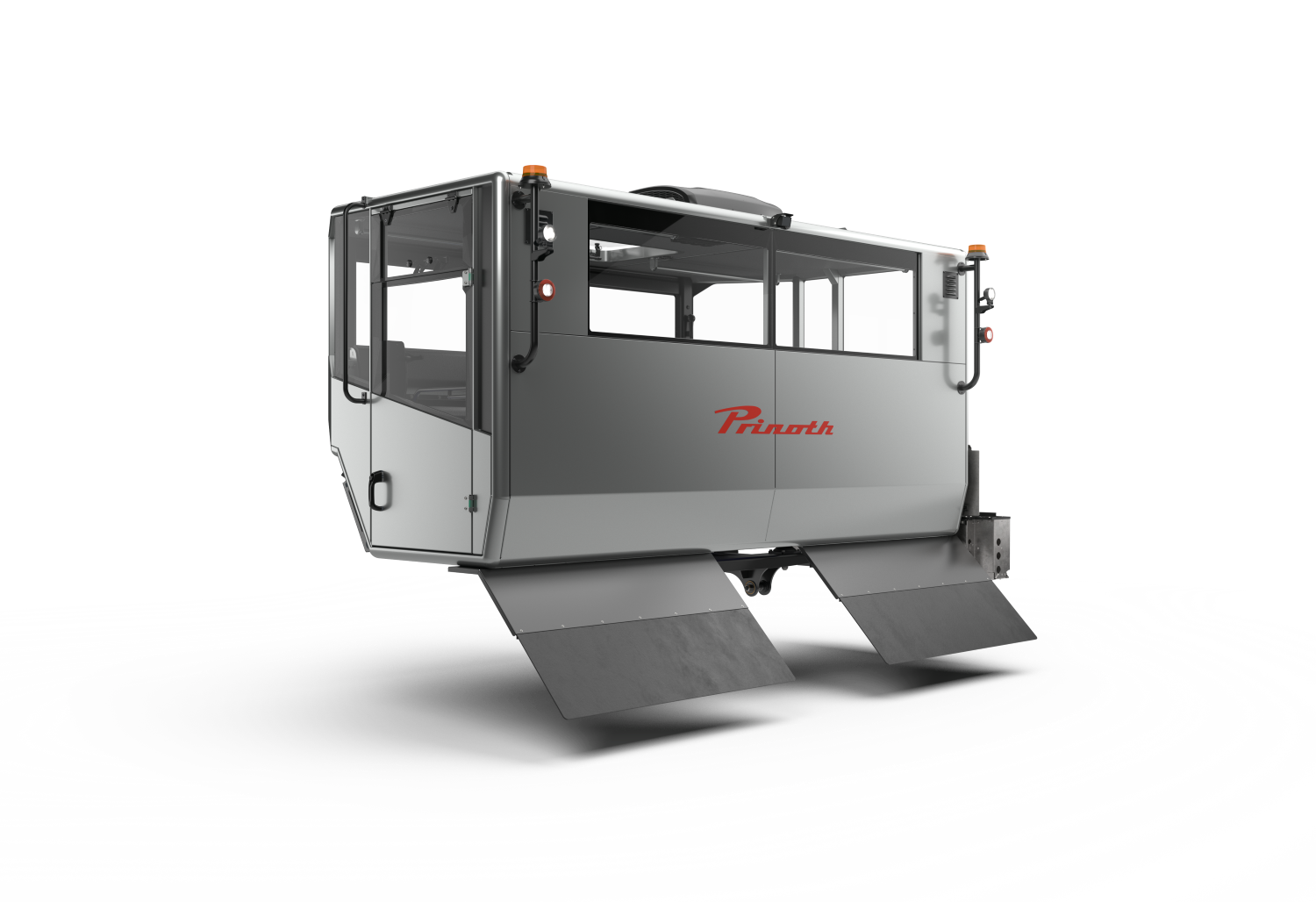

Leitwolf & Bison Transport Cabin

Leitwolf & Bison Transport Cabin

The multipurpose Transport Cabin for Leitwolf & Bison was developed for two main purposes - transporting people and carrying materials.

download data sheet

Power Tiller

Power Tiller

The Power Tiller produces deep, fine-grained grooves which means sensational slope quality that lasts.

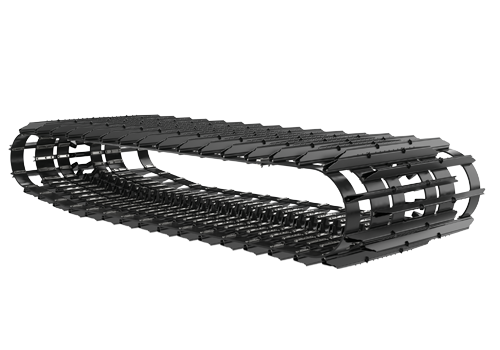

Closed Steel Tracks

Closed Steel Tracks

These tracks are ready to work on the toughest conditions. With their heavy duty durability, they perform on surfaces that vary from snow to rocky ground.

download data sheet

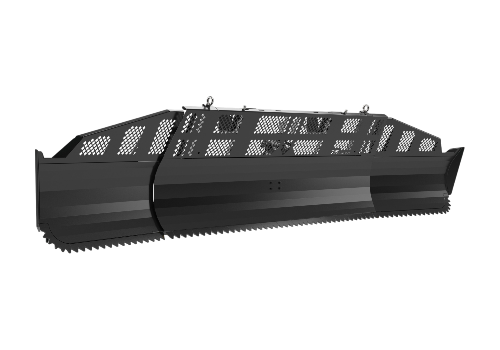

X Blade
