LEITWOLF

LEITWOLF

The Master of Slopes.

Engine

Engine

MTU 6R 1300 / OM 471

MTU 6R 1300 / OM 471

Power

Power

530 hp ECE @ 1,600 rpm

390 kW / 530 hp @ 1,600 rpm

Torque

Torque

1,918 ft-lb @ 1,300 rpm

2,600 Nm @ 1,300 rpm

Your Benefits

More Work in Less Time

More Work in Less Time

With the largest cutter bar, a powerful 530 hp engine, and optimal weight, the Leitwolf grooms more area in less time than any other model.

Save Time and Money

Save Time and Money

Due to the combination of power and efficiency coupled with digital technologies that let the operator know the depth of snow, both time and money are saved.

Perfect Slopes for Happy Customers

Perfect Slopes for Happy Customers

With patented tiller technology, slope quality lasts, enabling winter sport enthusiasts to enjoy the slopes all day long.

Master of Slopes

The Leitwolf is built to be the Master of Slopes with an engine ready for anything. It’s the most powerful snow groomer in our fleet with the best power and torque-to-weight ratios.

Master of Slopes

Configuration

Perfect for parks. Next to the all-round visibility through the operator’s center seat and rearview camera, the Leitwolf X has special features for parks and funlines.

The increased range of movement of the blade and tiller (more than twice the standard vehicle), the custom-designed park blade with side cutters, and the inclinometers enable perfect execution of park and funline features.

The winch can be operated in three modes (Auto/Eco/Manual) with a maximum pulling force of up to 4.5t / 5 tn. Operators can prioritize pulling force or working speed. Due to the large radius of the drum and pulleys, less strain is put on the cable, increasing lifespan. Additionally, for ease of use,the included Roll-Out System enables the operator to easily pull out the winch cable.

The Leitwolf can be an excellent addition to a Nordic Center with wide trails. For classic tracks, attach a Power tiller and Nordic Liner, to guarantee perfect finishes that meet Olympic standards.

Two or four track setting plates and the track tillers can be used independently. They adjust position and surface pressure depending on the requirements and condition of the trail, enabling the best tracks

The Skating finisher has a smaller profile than an alpine tiller, which produces a finer, narrower corduroy finish – ideal for a smooth skating glide.

Features

The 13-liter MTU engine offers maximum performance. The straight-six engine produces a massive 530 hp at a max torque of 2600 Nm so that power is available whenever needed.

An exhaust treatment system with SCR catalytic converter, oxidation catalyst and diesel particulate filter reduces emissions to a minimum.

Impressively Low Emissions This machine meets the world’s highest emission standards—Euromot Stage V. In addition to diesel, it can also run on HVO, GTL or BTL without any modifications needed to the engine. This means ski resorts can stick with standard diesel or explore alternative fuels to help minimize CO2 yet further.

Power and Sustainability

Custom Interface The customizable Prinoth Control Unit is convenient and practical. Each operator can tailor the user interface with their preferred shortcuts and vehicle settings. This means that each time they operate the vehicle , their relevant settings are saved with the RFID key – making the start-up process faster.

Single Touch
The 12” tilting touchscreen makes everything easy to see at night or during the day. The rearview camera display can be changed to large or small on the screen. And most important, vital details about the machine such as quick access pages, engine, tiller and winch are always visible.

Prinoth Control Unit

Comfortable Operation
The unique “joystick-in-joystick” design provides precise control and allows for simultaneous blade movement. The ergonomic joystick hand rest allows for hours of smooth, comfortable operation. The reaction time has been reduced making it easier for operators to feel the blade in action which increases accuracy and operator comfort.

Consistency is Crucial
All Stage V vehicles contain the same operating system, which makes switching models effortless. This reduces time needed to learn a different system while boosting operator confidence.

Joystick-in-Joystick

Quiet, Sleek, Spacious
The large, quiet cabin has a generous footwell to provide plenty of legroom. Windscreen, side window and footwell heating are standard, and an integrated sunroof allows for fresh air. Fully automated air conditioning is available as an option.

Cabin Comfort

All-Around Visibility
The standard center seat and tilting touchscreen display provide an excellent all-around view and allow the operator to enter or exit the machine on either side. Additional full-size tailored Recaro seats for passengers, make the redesigned cockpit the most comfortable homebase yet.

Standard Center Seat

Both the Posiflex and Power tillers correspond to a working width of 4.5m, which means operators can cover more slope surface in less time.

The Leitwolf's unique rear attachment frame with patented parallel offset allows the tiller to move up to one and a half feet (45 cm/18”) to either side of the center. The operator can choose between free trailing, locked, and parallel offset settings.

Working outside of the tracks while keeping the finisher comb parallel to the direction of travel makes the job easier and improves the final-finish. The offset capability also provides increased stabilization on the side hill. The approach is more streamlined because the operator is able to move the tiller closer to obstacles or overlap previous passes, saving both time and money.

Patented Parallel Offset Tiller

Lift or lower the suspension to create more or less ground pressure. Increasing or decreasing the number of crosslinks in the snow can increase traction, maneuverability, and reduce stress on the vehicle components. The front and rear operate independently, so the operator can determine the optimal pressure and shift the balance of the groomer up or downhill depending on the conditions and location.

Adjustable Suspension

With the largest cutter bar in the segment, operators can process more snow in a shorter period of time – allowing them to groom more acres more quickly with less fuel.

Groom More Acres, Faster

Technical data

The Leitwolf is built to be the Master of Slopes with an engine ready for anything. It’s the most powerful snow groomer in our fleet.

Download (PDF)
  • Engine

    MTU 6R 1300 / OM 471

    MTU 6R 1300 / OM 471

  • Power

    530 hp ECE @ 1,600 rpm

    390 kW / 530 hp @ 1,600 rpm

  • Torque

    1,918 ft-lb @ 1,300 rpm

    2,600 Nm @ 1,300 rpm

  • Cylinder and Displacement

    Straight-6, 12.8 L

    Straight-6, 12.8 L

  • Emission standard

    Euromot Stage V / EPA Tier 4 Final

    Euromot Stage V / EPA Tier 4 Final

  • Track working width

    14'9"

    4,500 mm

  • Vehicle length (without blade/tiller)

    17'7"

    5,350 mm

  • Total length with attachments (POWER Tiller)

    31'1"

    9,465 mm

  • Total height with tracks (without winch)

    from 9'5"

    from 2,882 mm

  • Clearing blade with side wings open (Master)

    19'6"

    5,950 mm

  • Clearing blade with side wings closed (Master)

    16'7"

    5,050 mm

  • Clearing blade with side wings open (Park)

    18'7"

    5,674 mm

  • Clearing blade with side wings closed (Park)

    15'2"

    4,625 mm

  • Tiller with side wings raised (POWER)

    18'5"

    5,610 mm

  • Tiller with side wings lowered (POWER)

    21'1"

    6,430 mm

  • Tank capacity

    (* with additional fuel tank)

    (* with additional fuel tank)

  • Fuel Types

    Diesel, HVO, GTL and BTL (According to the norms ASTM D975, EN590, EN15940)

    Diesel, HVO, GTL and BTL (According to the norms ASTM D975, EN590, EN15940)

  • AdBlue®/DEF capacity

    10.5 gal

    40 L

  • Weight with tracks, blade, tiller

    from 25,227 lbs

    from 11,443 kg

  • Winch weight (850 m cable)

    from 4,621 lbs

    from 2,096 kg

  • Winch pulling force

    5 tn

    44.1 kN / 4.5 t

Attachments

All of our snow groomers are geared towards practical everyday needs, and, because of their customized configuration, the most varied of requirements can be met. In order to supply the most suitable model for your requirements, we offer a wide range of additional devices.

Attachments
Master Blade

Master Blade

This best-in-class blade can push enormous amounts of snow while producing precise slope edges, allowing for fewer passes.

Park Blade

Park Blade

The widest blade available has specially arranged teeth for maximum pushing force and precision.

Nordic Liner Basic

Nordic Liner Basic

2 or 4 track setting plates which set long-lasting tracks that meet the highest Olympic standards. Track pans and track tillers can be used independently.

Nordic Liner Move

Nordic Liner Move

2 movable track setting plates that can be adjusted laterally up to 2 ½ feet (750 mm) to produce precise classic tracks that last.

Posiflex Tiller

Posiflex Tiller

The Posiflex Tiller has an adjustable snow chamber equipped with a positioning sensor. This allows to precisely control the flow of the snow through the tiller.

Power Tiller

Power Tiller

The Power Tiller produces deep, fine-grained grooves which means sensational slope quality that lasts.

Closed Steel Tracks

Closed Steel Tracks

These tracks are ready to work on the toughest conditions. With their heavy duty durability, they perform on surfaces that vary from snow to rocky ground.

Gamskette (Aluminum) Tracks

Gamskette (Aluminum) Tracks

With their excellent climbing abilities and maneuverability, these long-lasting tracks are made for all types of vehicles. They feature overlapping locks.

Open Steel Tracks

Open Steel Tracks

The open-profile is idea for fresh and powder snow, and can be used on roads or fields. The overlapping lock simplifies handling and makes them easy to service.

Leitwolf Transport Cabin

Leitwolf Transport Cabin

Our flagship groomer is taking a page from the Husky and getting its very own transport cabin option. Coming 2024!

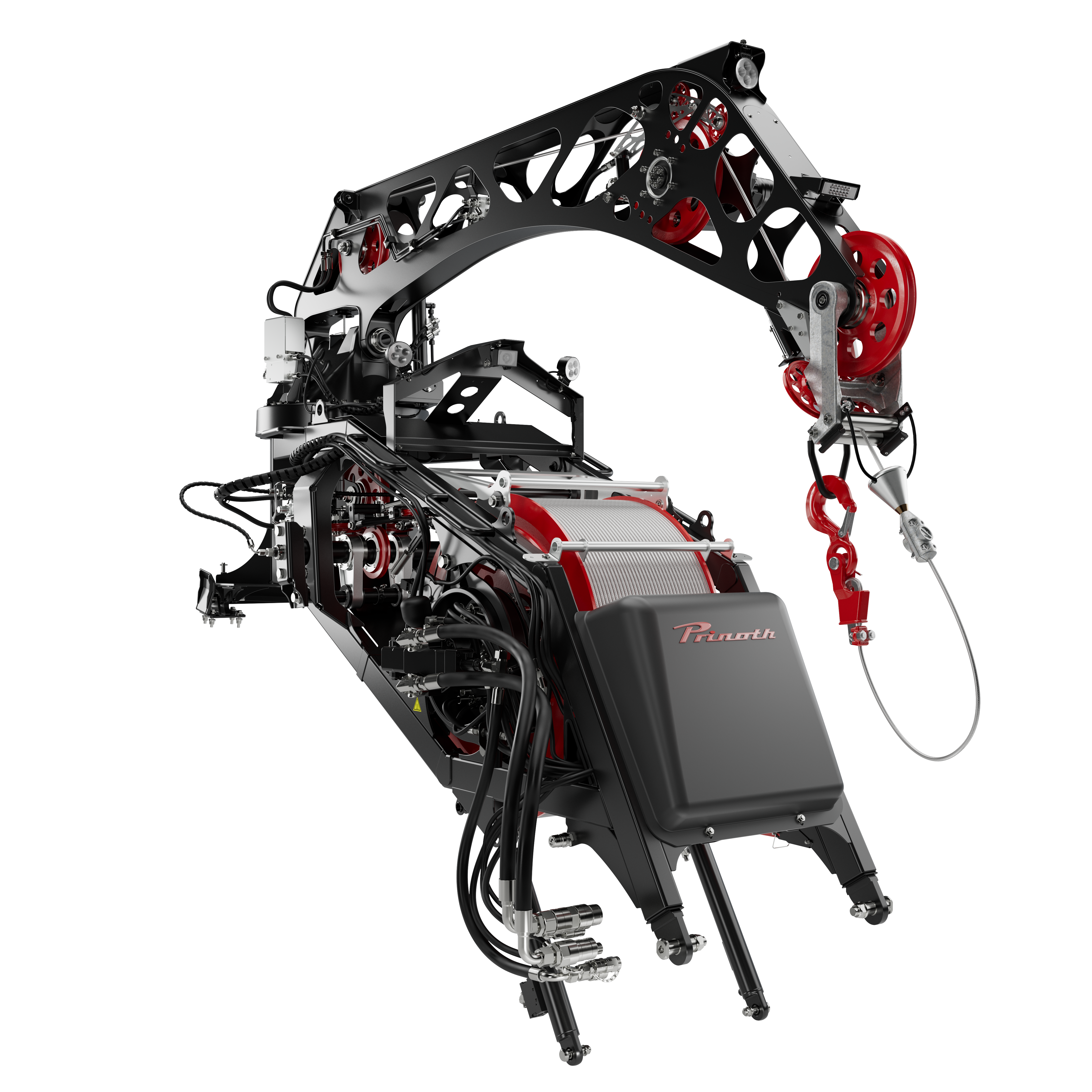

Automatic Winch

Automatic Winch

The winch has a pulling force 4.5t/5TN and can be operated in 3 modes: Auto/Eco/Manual. The pivot is located in the center, ensuring neutral handling.
